Printing method: Direct thermal

Paper width: 79.5±0.5mm

Print width: 72mm

Column capacity: 576 dots/line or 512 dots/line

Printing speed: 230 mm/s 260 mm/s 300 mm/s

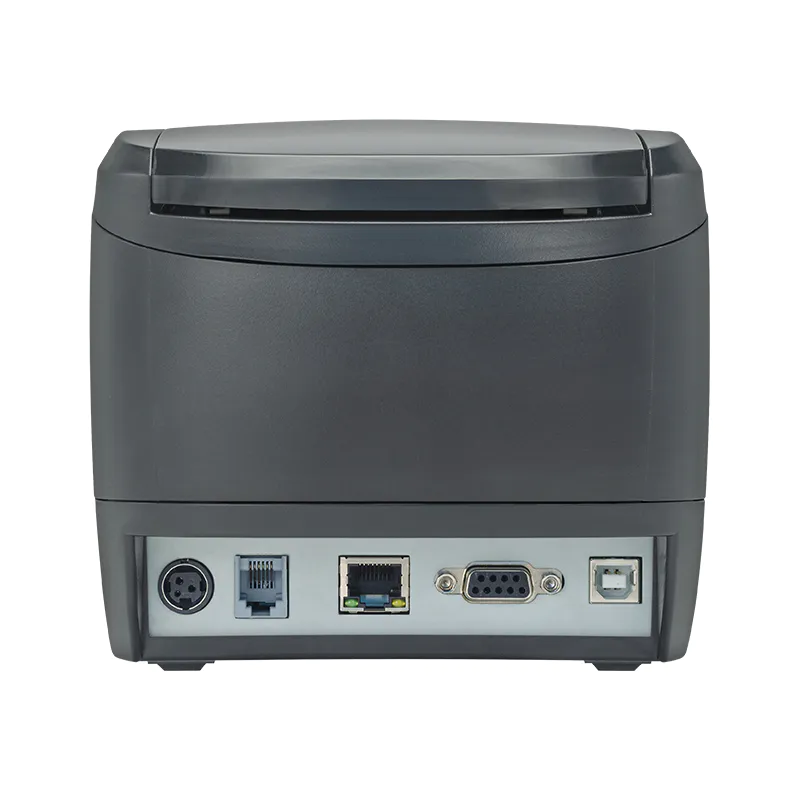

Interface:
USB / Lan / USB+Serial / USB+Lan
(Optional:USB+WiFi / USB+Bluetooth)

USB+Serial+Lan
(Optional: USB+Serial+Lan+WiFi /
USB+Serial+Lan+Bluetooth)

USB+Serial+Lan

Line spacing: 3.75mm(Adjustable by commands)

Column number: 80mm paper: Font A – 42 columns or 48 columns / Font B – 56 columns or 64 columns/
Simplified/Traditional Chinese – 21 columns or 24 columns

Character size: ANK, Font A:1.5×3.0mm(12×24 dots)

Font B:1.1×2.1mm(9×17 dots)

Simplified / Traditional Chinese:3.0×3.0mm(24×24 dots)



Barcode Character

Extension character sheet:
PC437(Standard Europe) / Katakana / PC850(Multilingual) / PC860(Portugal) / PC863(Canadian) / PC865(Nordic) / West Europe / Greek / Hebrew / East Europe / Iran/WPC1252 / PC866(Cyrillic#2) / PC852(Latin2) / PC858 / IranII / Latvian / Arabic / PT151(1251)

1D Barcode UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128

2D Barcode: QR CODE / PDF417

Input buffer: 96 Kbytes(USB/Lan/USB+Serial)
128 Kbytes(USB+Lan) 128 Kbytes
4096 Kbytes

NV Flash: 256 Kbytes





Power

Power adaptor: AC 100~240V, 50~60Hz

Printer Input: DC 24V/2.5A

Cash drawer: DC 24V/1A





Physical characteristics

Weight: 1.0 Kg

Dimensions: 193.76*144.23*133mm(D*W*H)

Auto cutter Partial: Cutter life

1.5 million cuts: Printer head life 150Km





Software

Emulation: ESC/POS

Driver: Windows/JPOS/Linux/OPOS/Android/Mac

Utility: Windows & Linux test Utility

SDK: iOS, Android, Windows





Environmental Requirements

Work environment: Temperature (0~45?) humidity(10~80%)

Storage environment: Temperature(-10~60?) humidity(10~90%
